Insulators & Electricals Company

call-answer (91) 7480 400800 / 805 noun_18959 (91) 7480 233329 / 400843 Visit website

1-8, New Industrial Area, PB No.1
Mandideep, Dist. Raisen, MP- 462 046
India

Open Google map

Overview

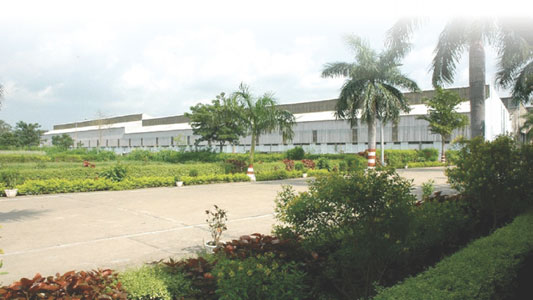

Head Office & Manufacturing: 1-8, New Industrial Area, PB No.1, Mandideep, Dist. Raisen, MP- 462 046, INDIA
Telephone: +91 – 7480 400800 / 805
Telefax: +91 7480 233329 / 400843
Key Contact Personnel:
Monish Kedia, AVP-Commercial mk@insulatorsindia.com
Prabhat Pandey, AVP-Exports pp@insulatorsindia.com
V. R. Shrivastava, GM-Marketing pvrshrivastava@insulatorsindia.com
S. Lakshminarayana, GM-Marketing sln@insulatorsindia.com
Year Founded: 1986
Total Number of Employees: 750
Quality Certification: BS EN ISO 9001:2008, ISO 14001:2004
Total Annual Sales: USD 20 to 50 million
Percent of Sales in Export Markets: 25%
Major Export Markets Served (2017): Europe, USA, Latin America, Middle East, South East Asia, South Africa, Russia, etc.
Range of Products Offered: Porcelain Insulators




Products

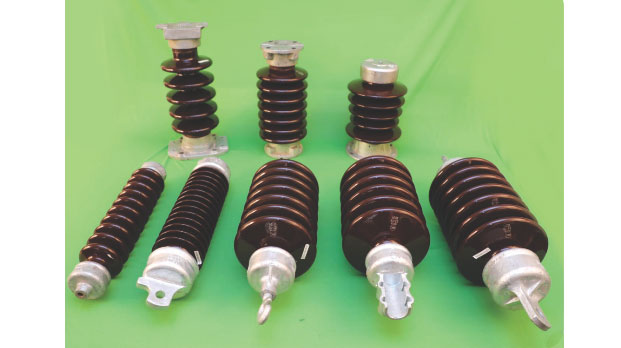

Insulators (Porcelain):

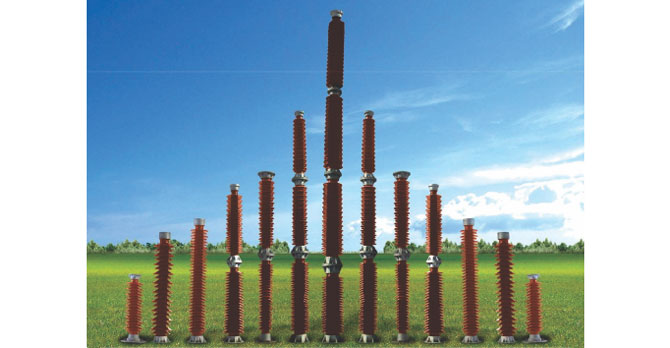

Station Post Insulators: 11 kV to 765 kV as per IEC 168/IEC 273 & ANSI C29.9, creepage distance up to 35 mm/ kV for disconnectors, busbar & substation application

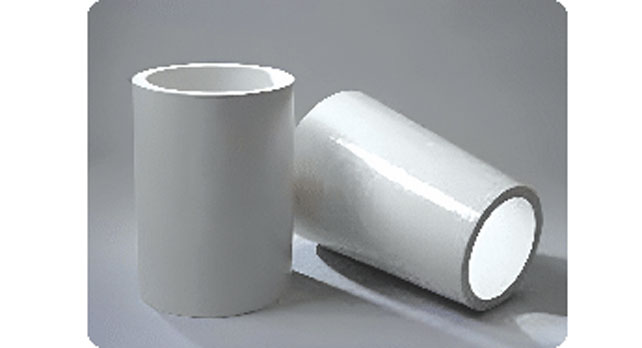

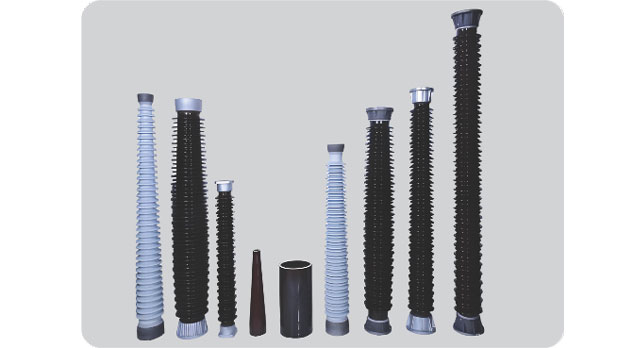

Insulators for Bushings: For high strength SF6 breakers/ CT / PT / CVT / VT/ IT up to 765 kV range. Single piece up to 2500 mm height & up to 5000 mm with epoxy joints
Insulators for Arresters: Up to 525 kV range
Insulators for Cable Terminations: Up to 525 kV range
Long-Rod type Insulators: 45 kN to 210 kN as per IEC 60433; coupling: Ball & Socket/ Tongue & Clevis
Suspension Disc-Type Insulators: 45 kN to 210 kN as per IEC 603834 and ANSI C 29-2 Normal and Anti-Fog type, coupling: Ball & Socket / Tongue & Clevis

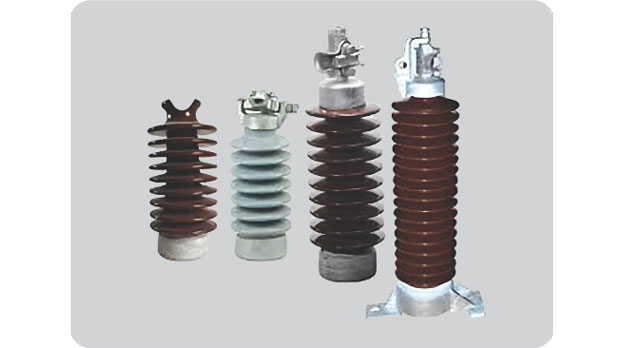

Line-Post Insulators: 11 kV to 66 kV as per IEC 720 and ANSI C 29.7
Railway Insulators: For 25 kV traction lines
Other Types of Insulators: Electrostatic Precipitator, Roof Insulators and Pantamount Insulators
Total Number of Employees in Insulator Production: 750
Annual Production Capacity for Insulators: 16,500 MT
